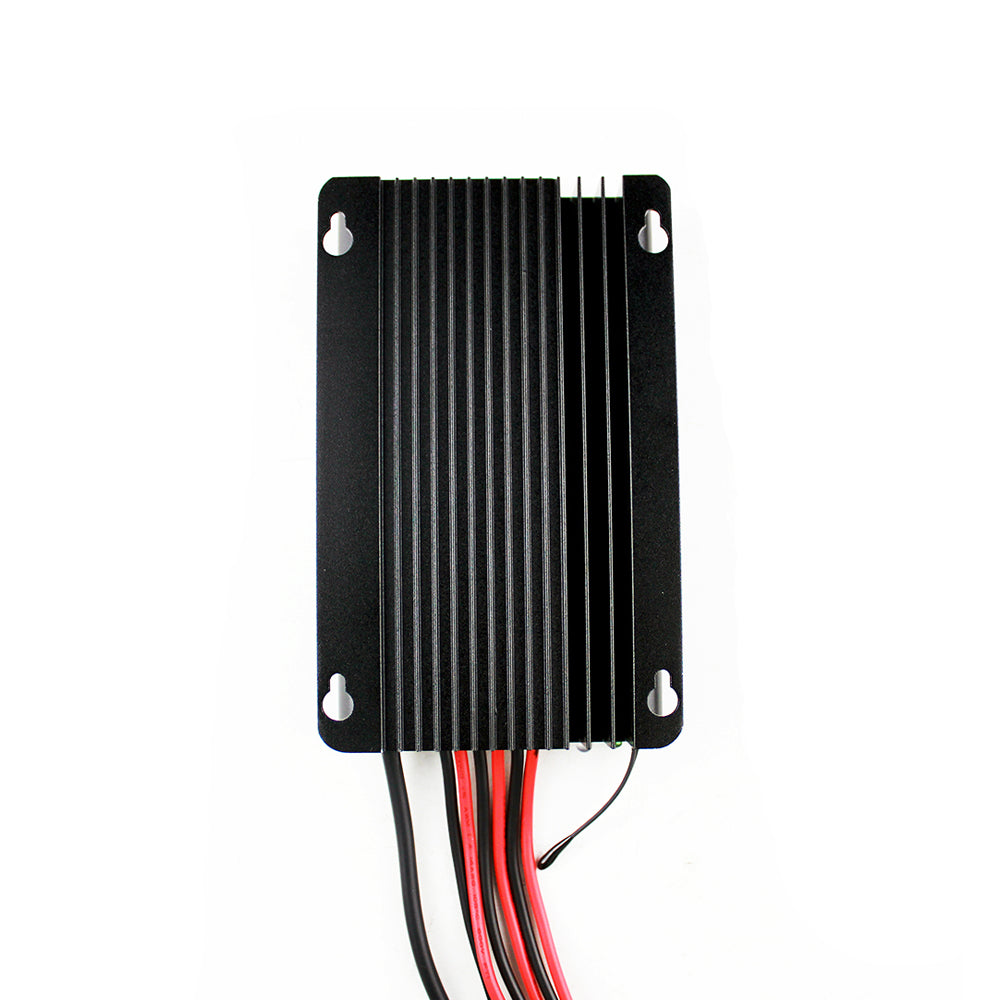

30A - MPPT Solar Panel Charge Controller for Lithium & Lead Acid Battery

Model: VS-30A-SC System Voltage: 12V/24V Max Charging Power: 500W Max volt on Bat. Terminal: 35V Max volt on PV Terminal: 55V Temp. Compensation: -3mV/K per cell (Boost, Equalization) -3.33mV/K per cell (Float) Communication: Optional Bluetooth Grounding: Common Negative Environmental Parameter: Working temperature: -40 to +60 C Storage temperature: -25 to +80 C Ambient Humidity: 0-100% RH Enclosure: IP67 Mechanical Parameter: Dimensions: 153x105x52mm Weight: 1.26kgs Maximum Terminals Wire Size: 10AWG(4mm²)

1. Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9% 2. Full digital technology, high charge conversion efficiency up to 98% 3. LED Bar for easy to read charge state and battery information 4. Waterproof design, suitable for indoor or outdoor use 5. 12/24V automatic recognition 6. Liquid, Gel, AGM and Lithium battery for selection 7. The separate ports for remote temperature sensor, make battery temperature compensation more accurate 8. Four stages charge way: MPPT, boost, equalization, float 9. Automatic over-temperature power reduction function 10. Dual automatic restriction function when exceeding rated Charging Power and Charging Current 11. Optional Android APP version for Bluetooth communication 12. Common negative design 13. Perfect EMC & thermal design 14. Full automatic electronic protect function
